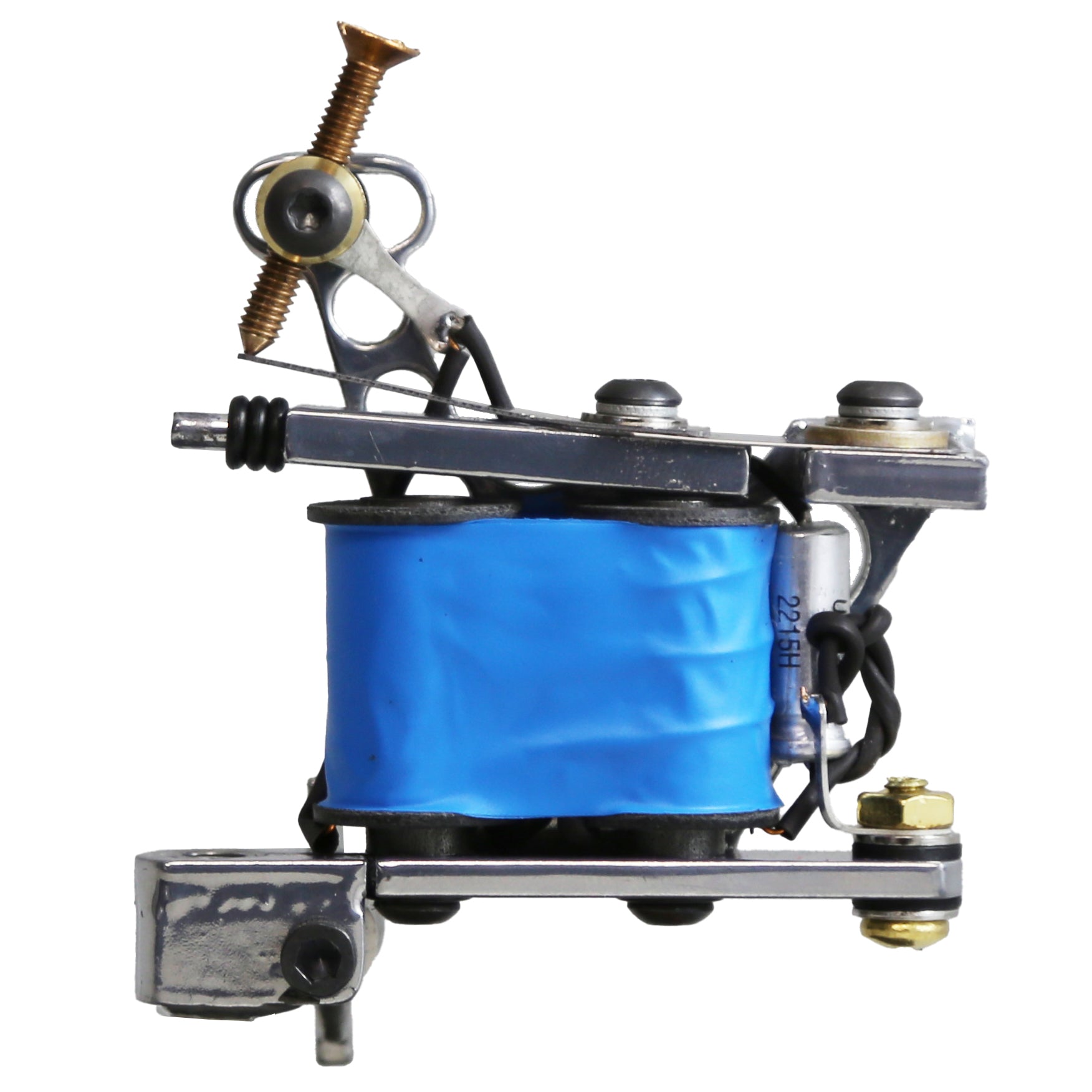

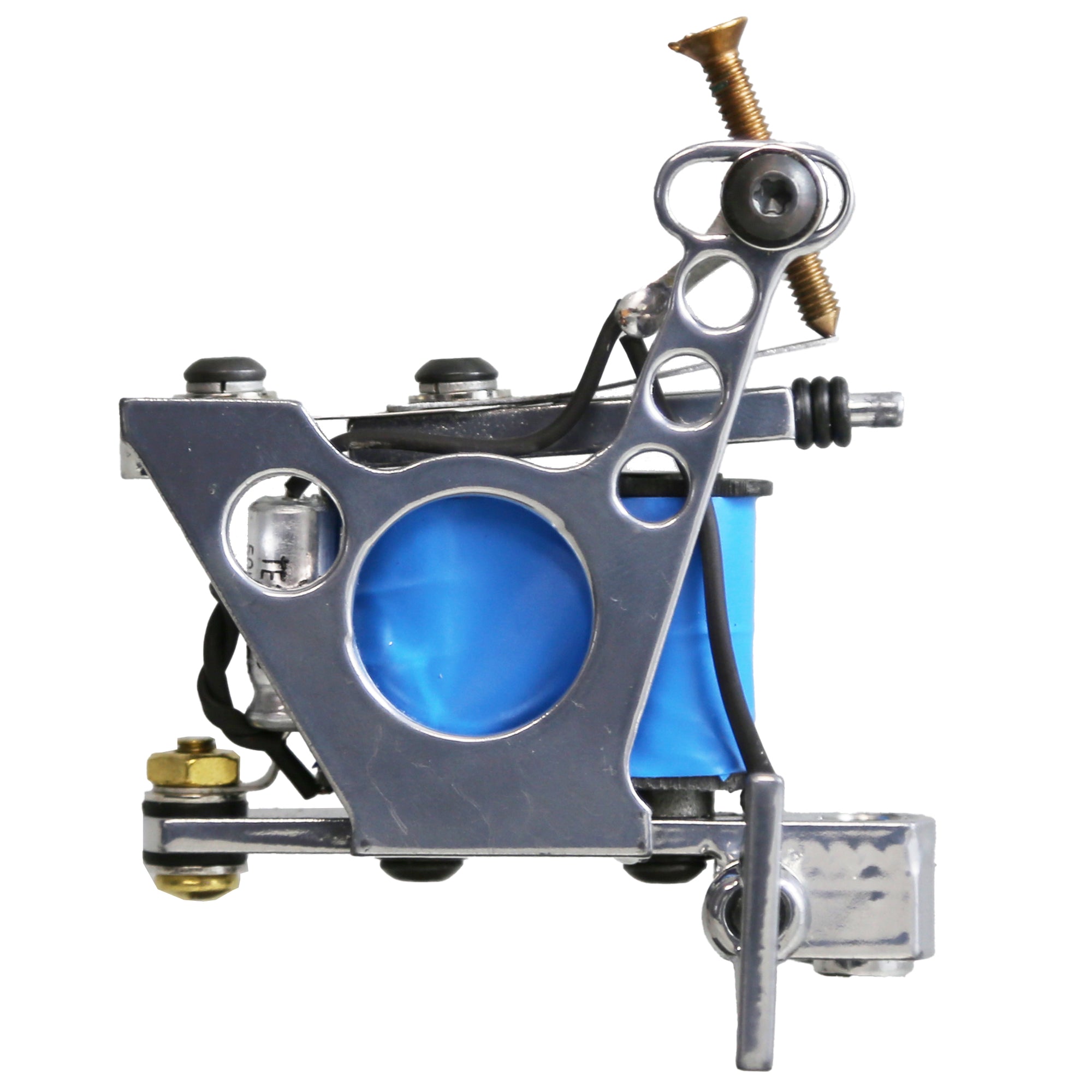

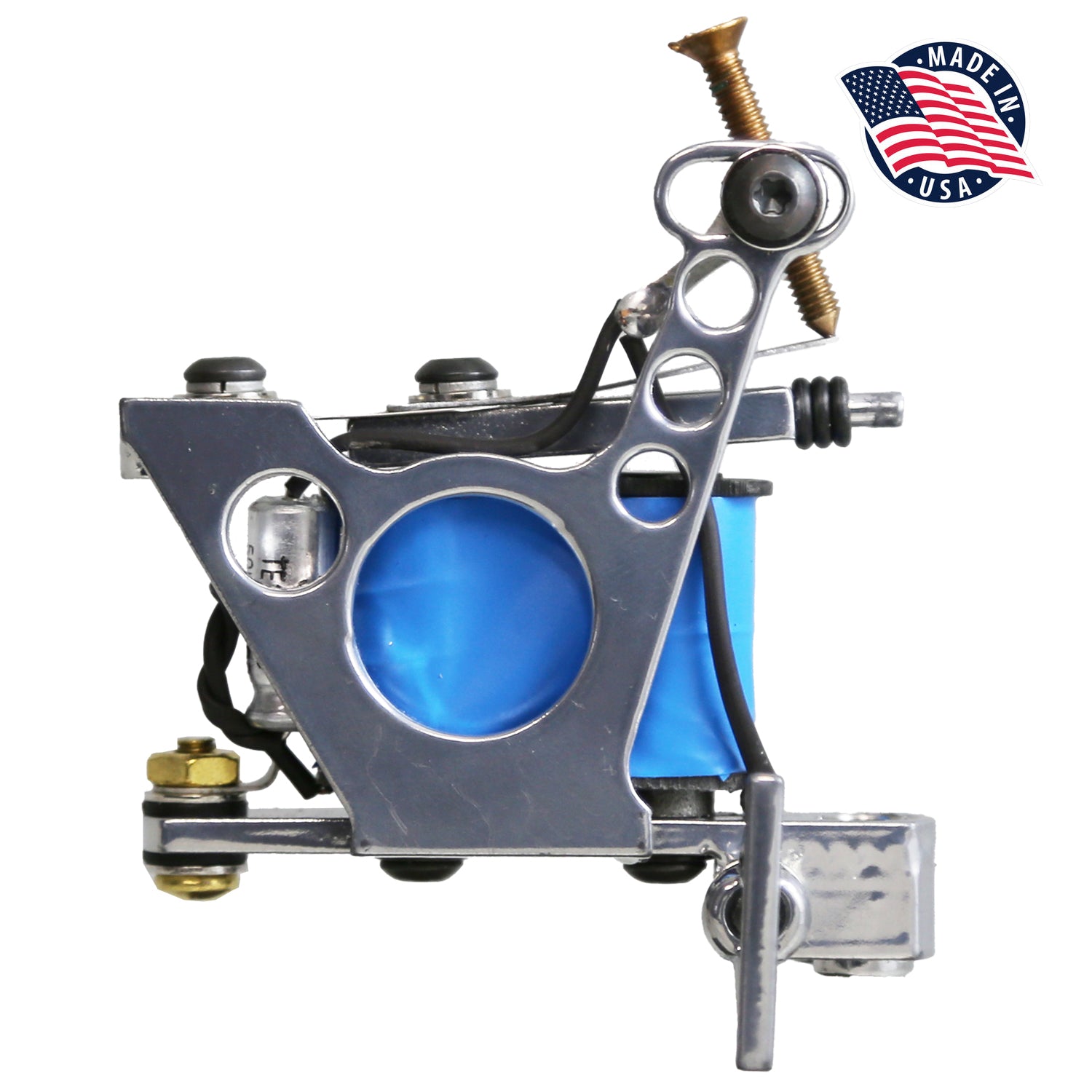

Veritas MFG A-Frame Standard Shader Machine

Built for smooth saturation and controlled shading, the Veritas MFG A-Frame Standard Shader combines a classic Coleman/Victory-inspired frame profile with dependable modern tuning. Finished in polished chrome and built around oversized 1.25" coils with 3/8" cores, this machine delivers a strong, consistent pull while maintaining a balanced feel in the hand.

Tuned to run low and smooth, the A-Frame Shader is designed for artists looking for a traditional-style machine capable of steady black and grey work, soft shading, and solid color packing without excessive weight or harshness.

The undercut collet tube vice provides a secure tube fit while keeping the frame profile clean and compact. Paired with a silicon bronze contact screw and brass hardware, this machine is built for reliable conductivity and long-term durability at the workstation.

Machine Specifications

• Machine Type: Standard Shader
• Machine Name: A-Frame
• Frame Style: Coleman / Victory Variant
• Frame Finish: Polished Chrome
• Coil Size: 1.25"
• Coil Cores: 3/8"
• Capacitor: 50uf 25v
• Contact Screw: Silicon Bronze
• Front Spring: .020
• Rear Spring: .015
• Rear Binding Post: Brass
• Front Binding Post Screw: Brass
• Tube Vice: Undercut Collet
• Weight: 6.60 oz.

Voltage Recommendations

• Tune at 5V Open
• Run at 5.3V – 5.5V Loaded

Recommended Use

Ideal for:

• Black and grey shading
• Color packing
• Medium to large groupings
• Smooth traditional shading applications

Hand built for artists who still appreciate the feel and response of a properly tuned coil machine.

~ ~

Smooth and slappy shader with lots of range. Great for Whippin' black and packin' color. turn it up or turn it down. Runs on the lower side of the voltage range. Best between  5v and 5.5v

All parts are made by hand, manually, on a mill and a lathe. This includes the coil deck/tube vise, spring deck, upright, shelf brace, armature bar, springs, coil cores, front and back binding posts.

All tattoo machine parts are cut, drilled, milled, turned and finished by hand. Handmade by Greg DiGiacinto in Mays Landing New Jersey.

This machines was assembled and tuned with love and care.

This is a handmade coil tattoo machine made for shading and coloring tattoos with tattoo ink and made for professional tattoo artists.

All machines require some time to "break in". I will make a few tattoos with them to ensure that your machine is PERFECT by the time you receive it.
